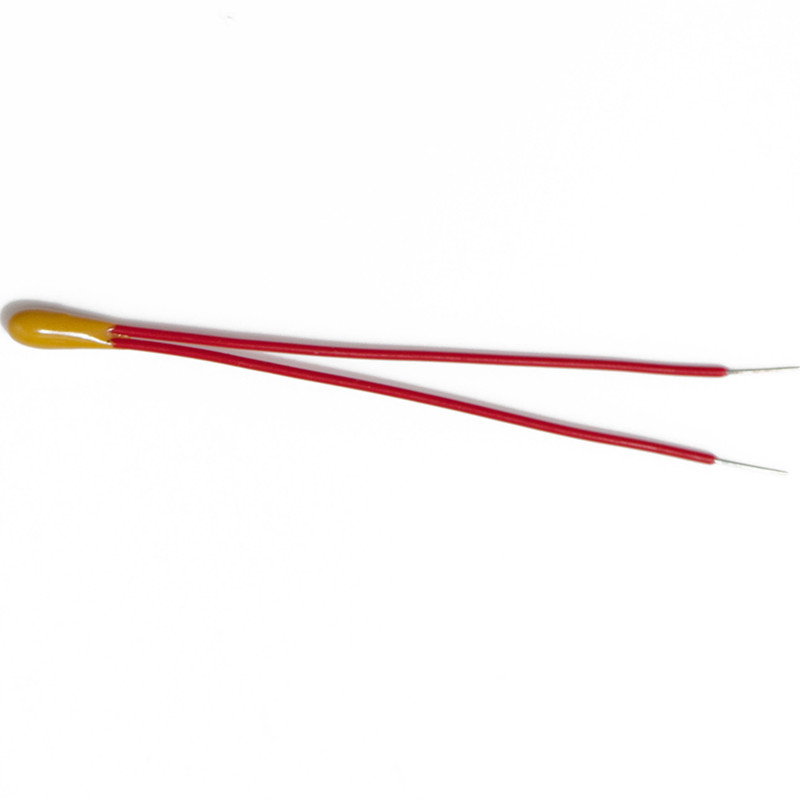

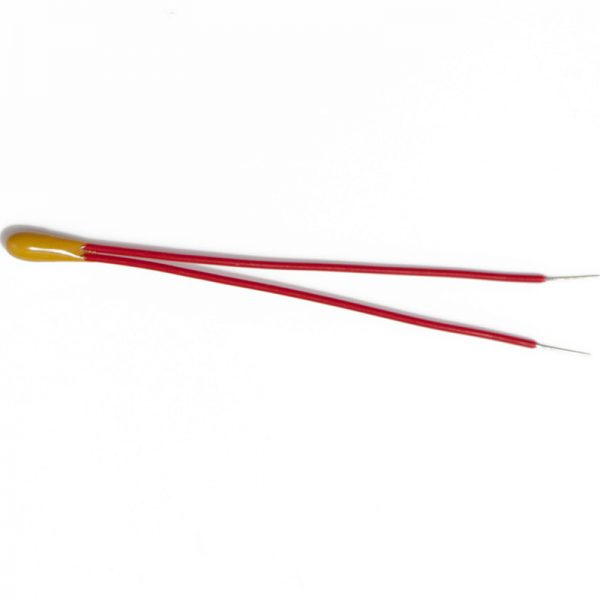

ET2X Series XLPE Wire Epoxy Coated NTC Thermistor
Back to products
FT Series Polyimide Film Type NTC Thermistor

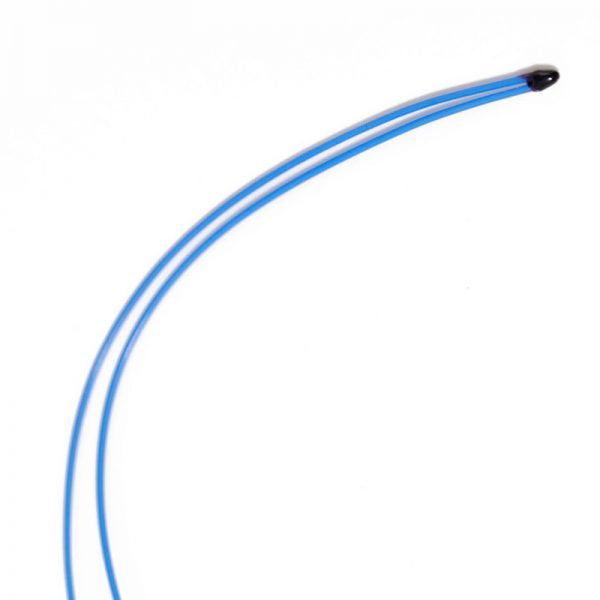

ET2K Series Kynar Wire Epoxy Coated NTC Thermistor

The ET2K series are small size chip soldered to 30AWG Solid Silver Plated Nickel Leads with Kynar Insulation. Wide range of tolerances and wire configurations makes them ideal choice for temperature sensing, control and compensation. It is easy and flexible to use.

Download

Categories: , , Tags: , ,
Description

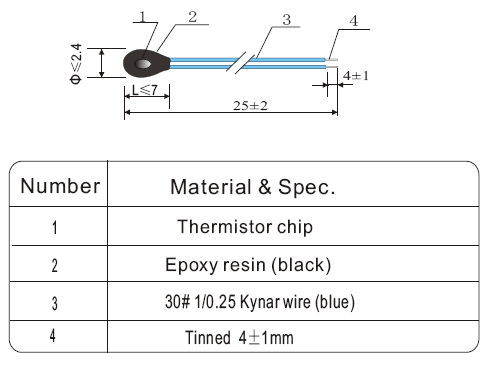

DRAWING（unit：mm）:

ET2K:

FEATURES:

  • Epoxy coated, excellent mechanical strength
  • Excellent thermal cycle endurance
  • Small size and fast thermal response time
  • Temperature range -40ºC to +105ºC

APPLICATIONS:

  • Temperature sensing in environments where thermal shock and humidity are present
  • Assembly into probes for a wide variety of applications
  • Air conditioning systems
  • Refrigeration control
  • Fire Detection Systems

OPTIONS:

  • Alternative bead size : OD2.1mm~OD2.5mm
  • Alternative Kynar wire gauge: 32#,30#,28#,
  • Alternative Kynar wire length: Min15mm-Max2000mm
  • Alternative  parameter:10k3435,10k3950,50K3950,100k3950,100k4010, 100k4250,etc.
