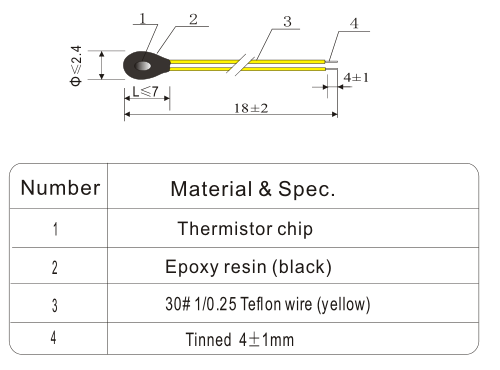

DRAWING（unit：mm）:
ET2T:
FEATURES:
- Wide operating temperature range:-40℃~150℃
- Epoxy coated, excellent mechanical strength
- Insulated wire can be bent as per installation conditions
- Excellent thermal cycle endurance
- Small size and fast thermal response time
- PTFE-insulated leads of silver-plated copper or Tinned copper
- Custom size and wire configuration
APPLICATIONS:
- Automotive seat heating
- Automotive rearview mirror heating
- Automotive steering wheel heating
- Industrial electronics
- Home appliance
OPTIONS:
- Alternative bead size : OD1.2mm~OD3.5mm
- Alternative Teflon wire gauge: 32#,30#,28#,26#
- Alternative Teflon wire UL No.: UL1332，UL1333,UL10362
- Alternative Conductor：Tinned Copper/ Silver plated copper wire ,Tinned Copper/ Silver plated nickel wire
- Alternative Teflon wire length: Min15mm~Max2000mm
- Alternative parameter: 10k3435,10k3950,50K3950,100k3950,100k4010,100k4250,etc.
